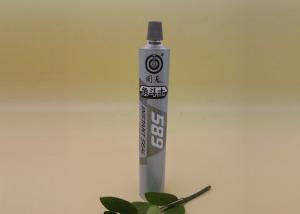

Screw Cap Empty Cream Tubes , 13.5mm - 40mm Diameter Lotion Squeeze Tubes

Product Categories
Ezhou Xinji Pharmaceutical Packaging Co.,Ltd
Contact Now

Screw Cap Empty Cream Tubes , 13.5mm - 40mm Diameter Lotion Squeeze Tubes

Brand Name : Xinji

Model Number : Dia13.5mm-40mm

Certification : ISO, CDFA

Place of Origin : China

MOQ : 50000 pcs

Payment Terms : L/C, T/T, Western Union

Supply Ability : 300 million pcs per year

Delivery Time : within 30 days

Packaging Details : box, carton and pallet; or other special packing as per your requirement.

Material : 99.7% purity aluminum

Diameter : 13.5mm-40mm

Artwork : Customized

Nozzles : Open, Elongated, Sealed

Capacity : 3 - 120ml

Name : Gule aluminum tube

Contact Now

Industrial Flexible Packaging Adhesive Tube , Soft Aluminum Tubes With Screw Cap

We are the 3rd largest manufacturer of aluminum collapsible tube industry. Our tube is made of good quality aluminum material with advanced printing machine in a GMP workshop. These tubes are widely used for pharmaceutical ointment/cream packing, and also cosmetic packing, such as hair dying cream, hair bleaching cream, etc.

British Standard of Aluminum Collapsible Tube BS2006-1984
Sheet3 Size Standard

Diameter		 Tolerance of Diameter
Length		 Tolerance of Length
Nozzle		 Tube Wall Thickness Shoulder Thickness
Max Min Max Min Shoulder Angle Standard
mm mm mm mm mm mm mm mm
10




±0.1		 60


±0.5		 60 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
13.5 75 60 or 70 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
16 100 80 0.12 0.08 0.65 0.35 120℃ or 126℃
19 110 95 0.13 0.1 0.65 0.35 120℃ or 126℃
22 130 95 or 115 0.14 0.1 0.65 0.35
25 150 95 or 115 0.14 0.1 0.7 0.4 No Standard
28 165


±1.0		 115 0.15 0.11 0.75 0.45
30 165 115 0.16 0.11 0.75 0.45
32 170 115 0.16 0.11 0.75 0.45
35 185 115 0.16 0.11 0.75 0.45
38 185 115 0.16 0.11 0.75 0.45
40 200 115 0.16 0.11 0.75 0.45
45 ±0.25 200 115 or 135 0.18 0.12 0.9 0.5
The Shoulder Angle need confirmed by manufacturer and purchaser, 90℃ shoulder angle normally used in extended nozzle

Our advantages:

  • Scales: Now we are the top 3 in China aluminum material manufacturing company.
  • Experience: We have nearly 40 years aluminum packaging material manufacture and printing experience.
  • Quality: ISO 9001/ Drugs packaging materials and containers. Registration Permit by CFDA. One hundred thousand stage purification workshop. Strong R&D team, customized-products. 100% QC inspection before delivery
  • Technique: many researchers are invested in product study.
  • Production lines: Full automatic production lines from Germany and Italy.
Size & Volume
Diameter
(mm)		 13.5 16 19 22 25
Length
(mm)		 55
↓
100		 55
↓
105		 80
↓
130		 85
↓
140		 95
↓
160
Content
(mm)		 4.5
↓
7		 7
↓
12		 14
↓
24		 20
↓
35		 30
↓
55

Our quality system


ISO9001certification
Drugs packaging materials and containers. Registration Permit by CFDA
(100 thousand dgree purified workshop)

In the production of the collapsible, It's almost 500 degrees high temperature sterilizing.
Our workshops were built in according to the construction requirements of GMP in pharmaceutical production. Our factory use clean central-station air handing units from internal coating to packaging workshop to ensure our production environment reach 100n thousand grade standard.
The compressed air after strict purification treatment fully meet the production conditions
of direct contact with pharmaceutical packaging materials.
