Brand Name : Xinji
Model Number : Dia 13.5mm - 40mm
Certification : ISO, CFDA
Place of Origin : China
MOQ : 50000 pcs
Payment Terms : L/C, T/T, Western Union
Supply Ability : 300 millions pcs per year
Delivery Time : 30 days
Packaging Details : Packed in strong carton,suitable for long distance ocean transportation.
Aluminum : > 99.7% purity
Color : Up to 6 colors
Name : gel pharma tube
Volume : 3ml - 200ml
Standard : BS2006-86
Certificate : ISO, CFDA
6 Colors Printing Ointment / Cream / Gel Pharma Tube with Screw Cap
Company Brief Introduction:
1. Located in China's central city of Wuhan city circle, Ezhou City, Hubei Province.
2. Established in 1981 with nearly 40 years' experience in aluminum tube manufacturing.
3. Our company brought in several high speed automatic production lines from Germany and Italy. We gather a professional management team, combine the tube manufacturing technology accumulated in nearly 40 years with scientific management, regard "make every tube trustworthy" as our quality concept to cover the whole process including products designing, developing, producing, transporting, and service.
4. The workshop were built in accordance with construction requirements of GMP in pharmaceutical production. And ensure our production and packing environment reach 100 thousand grade standard.
General Description
1. CAP: Colour - white / red / blue, Type - Conual Piercer, Material: HPPE.
2. Aluminum Blamks: Aluminum>99.7% pure.
3. Internal Lacquer: Type-Expoxy-Phenolic Resin.
4. External Base Coat: Type-Enamel;Colour-White.
5. Colour Ink: Suplier-Shanghai DIC.
6. Crimp sealant brand: PPG.
7. Manufacturing Environment: The construction of 100000-ton cleaning production packing workshop.
8. Equipment: Germany PSG fully automatic production line.
9. The standard of Inspection: BS2006-86 Aluminum tube for medicine ointment.
10. Closing: Under an air pressure of 0.2Mpa, no leakage.
11. Appearance: Integrity and clean.
12. Coating: The color matches the standard,no exposure and no tiny oil droplets.
13. Color printing: Clear and entirety, the overprint is in position.
14. Flexibility and adhesion: The lacquer did not split off and no crazing.
15. Package: Wholeness and clean.
British Standard of Aluminum Collapsible Tube BS2006-1984 | |||||||||
Sheet3 Size Standard | |||||||||
Diameter |
Tolerance of Diameter | Length |
Tolerance of Length | Nozzle |
Tube Wall Thickness | Shoulder Thickness | |||
Max | Min | Max | Min | Shoulder Angle Standard | |||||
mm | mm | mm | mm | mm | mm | mm | mm | ||
10 | ±0.1 |
60 | ±0.5 |
60 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ |
13.5 | 75 | 60 or 70 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ | ||
16 | 100 | 80 | 0.12 | 0.08 | 0.65 | 0.35 | 120℃ or 126℃ | ||
19 | 110 | 95 | 0.13 | 0.1 | 0.65 | 0.35 | 120℃ or 126℃ | ||
22 | 130 | 95 or 115 | 0.14 | 0.1 | 0.65 | 0.35 | |||
25 | 150 | 95 or 115 | 0.14 | 0.1 | 0.7 | 0.4 | No Standard | ||
28 | 165 | ±1.0 |
115 | 0.15 | 0.11 | 0.75 | 0.45 | ||
30 | 165 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
32 | 170 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
35 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
38 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
40 | 200 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
45 | ±0.25 | 200 | 115 or 135 | 0.18 | 0.12 | 0.9 | 0.5 |
Application of Aluminum Collapsible Tube | |
Product Type | Contents |
Health caring | eye cream,body lotion,shaving cream,foot cream,toothpaste,hand cream |
Medicine | unguent,medical cream,gel |
Adhesive Glue | super glue,rubber cement,leather adhesive,resin,wood glue,epoxy glue,metal glue,sealant |
Industrial Grease | brake grease,silicone-based grease,sewing machine lubricating oil,gear grease,red rubber grease,lithium-based grease |
Cosmetics | eyeliner,lip balm,hair dressing cream,nail beauty products,mascara |
![]() |

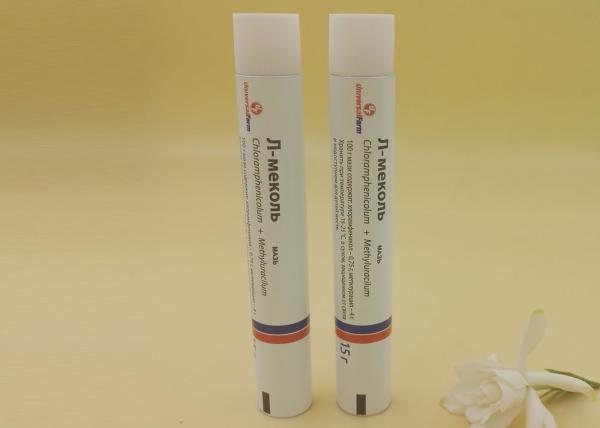

Screw Cap Metal Tube Packaging , Color Printing Ointment / Cream Packaging Tubes Images |
